What Is Bevel Gear Grinding?
Bevel gear grinding is a precision finishing process used to improve the accuracy, tooth geometry, contact pattern, and surface finish of bevel gears. Unlike gear cutting, which creates the gear teeth, grinding removes a small amount of material from the tooth surfaces to achieve tighter tolerances and improve gear performance.
Bevel gear grinding is commonly performed after heat treatment to correct distortion and restore the gear to its required dimensions. The process is essential for applications where accuracy, reliability, and smooth power transmission are critical.
At Duval Precision Grinding, we specialize in the precision grinding of Spiral Bevel Gears, Zerol Bevel Gears, and Hypoid Gears for aerospace, defense, industrial, and power transmission applications.
What Is a Bevel Gear?
A bevel gear is a gear designed to transmit power between intersecting shafts. Most bevel gear systems operate at a 90-degree shaft angle, allowing rotational motion and torque to change direction.
Bevel gears are commonly found in:
- Aerospace transmissions
- Industrial gearboxes
- Power transmission equipment
- Defense systems
- Heavy machinery
- Marine applications
The performance of these systems depends heavily on accurate tooth geometry and proper contact patterns, making precision grinding a critical finishing operation.
Why Are Bevel Gears Ground?
Grinding is often the final manufacturing step before a bevel gear enters service.
The process helps achieve:
- Improved tooth accuracy
- Better contact patterns
- Reduced noise and vibration
- Increased load carrying capacity
- Improved surface finishes
- Longer service life
- Greater transmission efficiency
Heat treatment can cause a gear to distort slightly. Precision grinding restores the gear to specification while ensuring consistent tooth geometry across the entire gear.
For aerospace and high-performance industrial applications, grinding is often necessary to meet demanding engineering requirements.
How Bevel Gear Grinding Works
During bevel gear grinding, specialized grinding wheels remove microscopic amounts of material from the gear tooth surfaces.
The process is carefully controlled to produce:
- Accurate tooth profiles
- Correct tooth spacing
- Proper tooth lead
- Consistent contact patterns
- Controlled surface finishes
Modern grinding equipment allows extremely precise material removal while maintaining the geometry required for smooth and efficient power transmission.
Because only a small amount of material is removed, grinding is considered a finishing operation rather than a manufacturing process.
Types of Bevel Gears We Grind

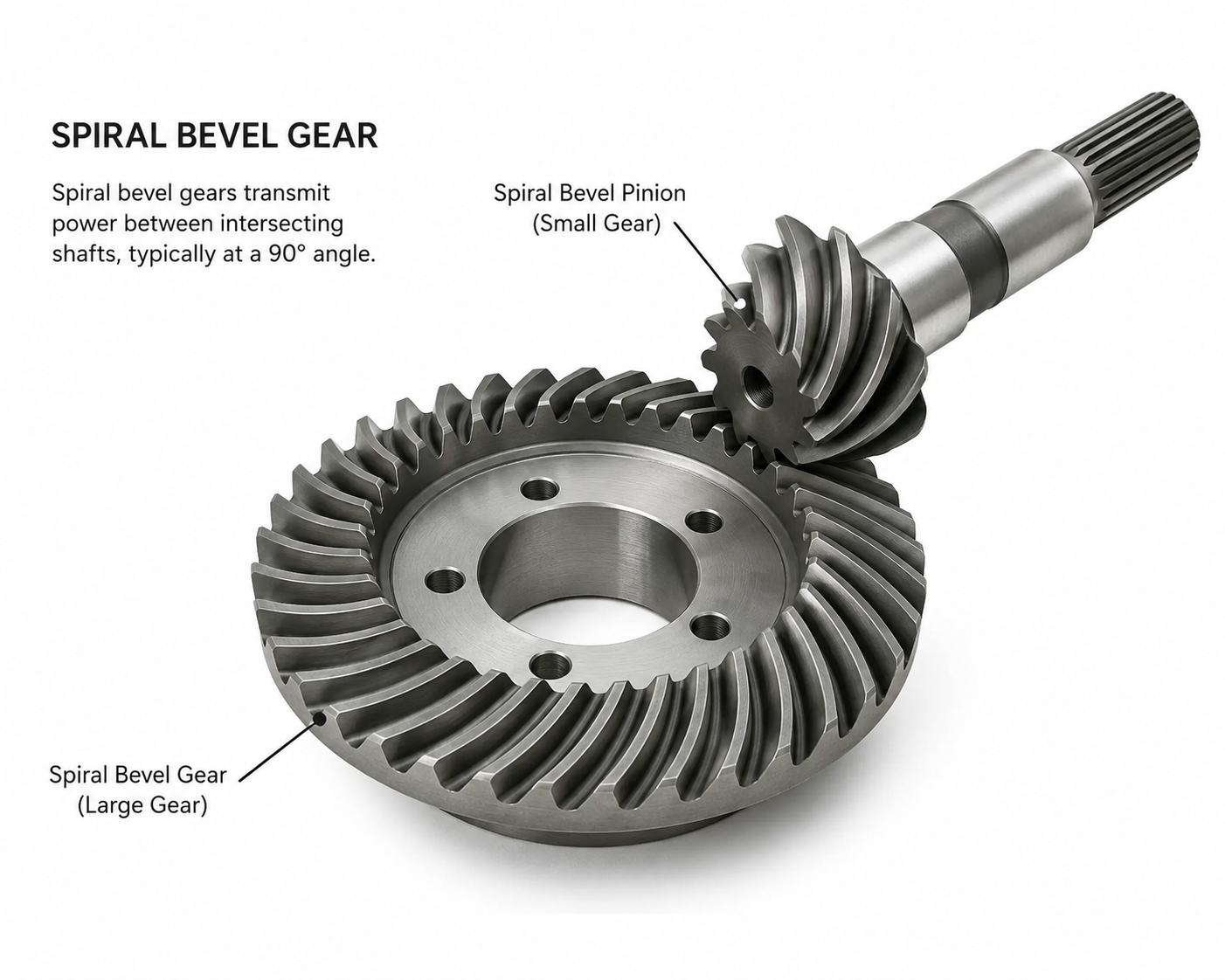

Spiral Bevel Gears
Spiral bevel gears feature curved teeth that engage gradually during operation. This design provides smooth power transmission, reduced vibration, and improved load distribution.
Common Applications
- Aerospace gearboxes
- Defense systems
- Industrial power transmission
- Heavy equipment
Benefits
- Smooth operation
- Reduced noise
- Higher load capacity
- Improved contact patterns

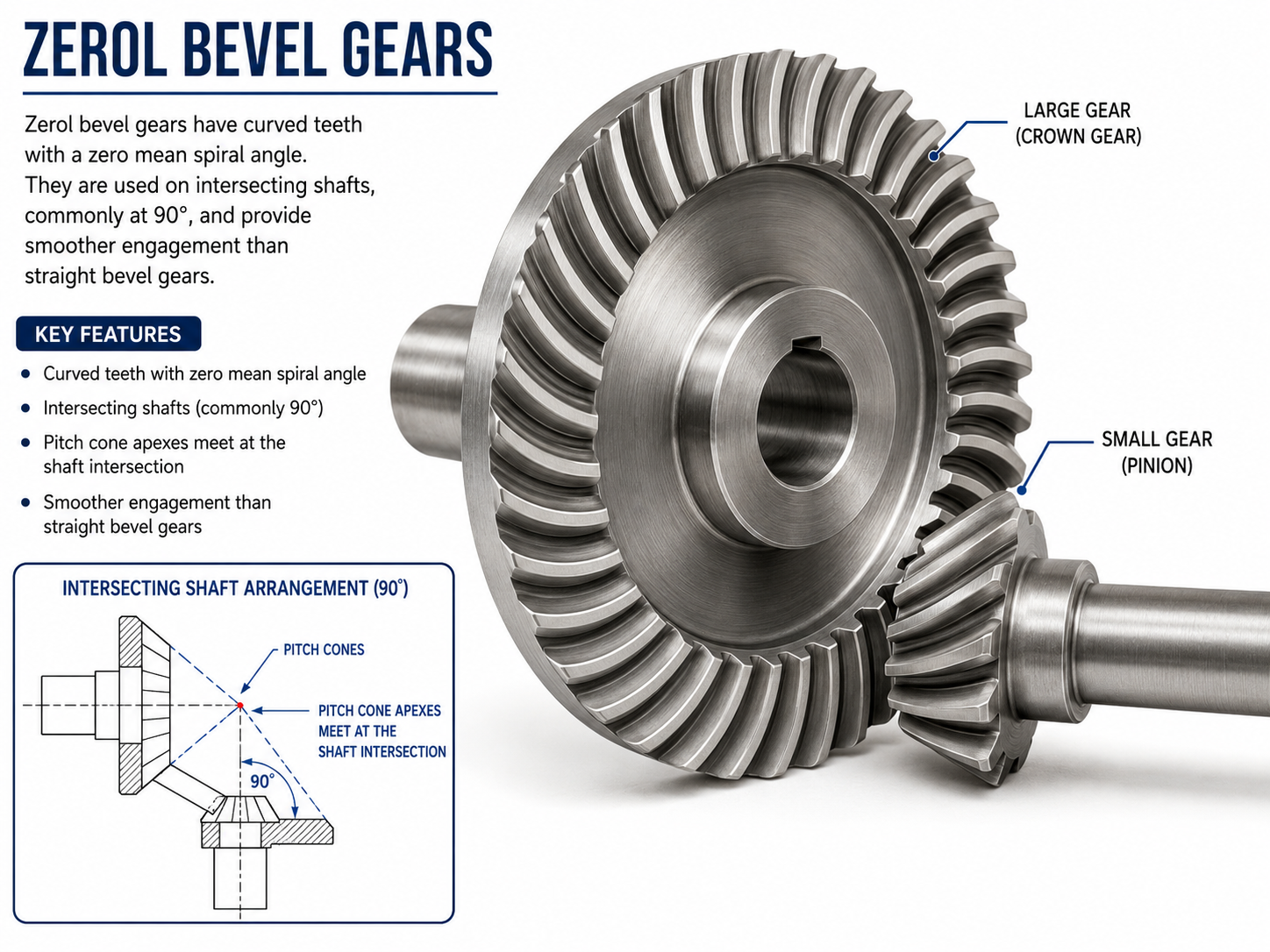

Zerol Bevel Gears
Zerol bevel gears combine characteristics of straight and spiral bevel gears. They provide improved running characteristics while maintaining a relatively simple tooth geometry.
Common Applications
- Industrial machinery
- Gear reduction systems
- Specialty power transmission equipment
Benefits
- Smooth engagement
- Consistent contact patterns
- Reduced vibration
- Reliable performance

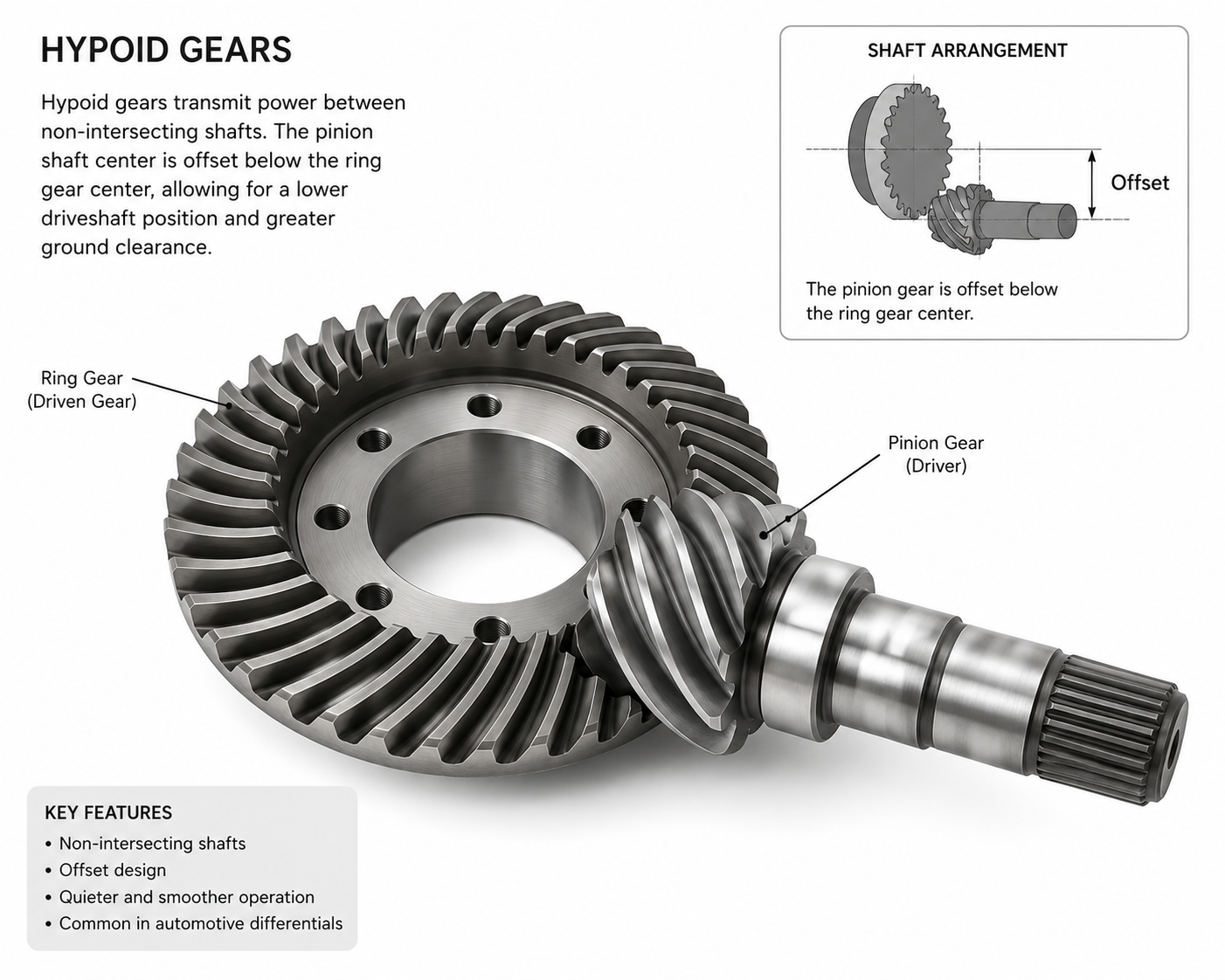

Hypoid Gears
Hypoid gears are similar to spiral bevel gears but operate with offset shaft centerlines. They are commonly used in high-load applications requiring smooth operation and high torque capacity.
Common Applications
- Aerospace systems
- Industrial drive systems
- Automotive differentials
- Heavy-duty equipment
Benefits
- High torque capacity
- Smooth operation
- Excellent load distribution
- Increased durability
Benefits of Precision Bevel Gear Grinding
Precision grinding offers several advantages over unground gear tooth surfaces.
| Benefit | Result |
| Improved Accuracy | Better tooth geometry and dimensional control |
| Better Surface Finish | Reduced friction and wear |
| Enhanced Contact Pattern | Improved load distribution |
| Reduced Noise | Smoother operation |
| Increased Gear Life | Longer service intervals |
| Higher Efficiency | Improved power transmission |
These benefits become increasingly important in critical applications where reliability and repeatability are required.
Industries That Use Bevel Gear Grinding
Aerospace
Aircraft transmissions and power transfer systems rely on precision bevel gears to ensure smooth and reliable operation.
Defense
Military vehicles and defense equipment require highly accurate gears capable of operating under demanding conditions.
Industrial Machinery
Industrial gearboxes, conveyors, and power transmission systems frequently utilize bevel gears for directional power transfer.
Heavy Equipment
Construction, mining, and off-road equipment often use bevel gears to transmit large amounts of torque.
Marine Applications
Marine propulsion and steering systems commonly depend on precision ground bevel gears for durability and efficiency.
Energy and Power Generation
Power transmission equipment used in energy production often incorporates bevel gears requiring precise tooth geometry and contact patterns.
Why Surface Finish Matters
Surface finish plays a major role in bevel gear performance.
A properly ground gear tooth surface can help:
- Reduce friction
- Improve lubrication performance
- Minimize wear
- Lower operating temperatures
- Reduce noise levels
- Extend service life
Precision grinding removes imperfections left behind from previous manufacturing processes and produces a smoother, more consistent tooth surface.
Bevel Gear Grinding at Duval Precision Grinding
At Duval Precision Grinding, we specialize in precision grinding services for Spiral Bevel Gears, Zerol Bevel Gears, and Hypoid Gears.
Our grinding capabilities help customers achieve:
- Tight tolerances
- Controlled surface finishes
- Improved contact patterns
- Consistent tooth geometry
- Reliable gear performance
We support customers across aerospace, defense, industrial, hydraulic, and power transmission industries requiring precision grinding solutions for critical applications.
Whether you need new gears finished to print or existing gears restored to specification, our team is committed to delivering dependable quality and precision workmanship.
Need Precision Bevel Gear Grinding?
Spiral bevel, zerol, and hypoid gears require accurate tooth geometry, controlled surface finishes, and consistent contact patterns. Duval Precision Grinding provides precision grinding services for aerospace, defense, industrial, and power transmission applications.
