What Is OD Grinding?
OD grinding, also known as outside diameter grinding, is a precision cylindrical grinding process used to finish the external surface of cylindrical components.
The process is commonly used when a part requires tight tolerances, improved roundness, precise concentricity, or controlled surface finishes.
Unlike conventional machining operations, OD grinding is typically used as a finishing process after a component has already been machined close to its final dimensions.
How OD Grinding Works

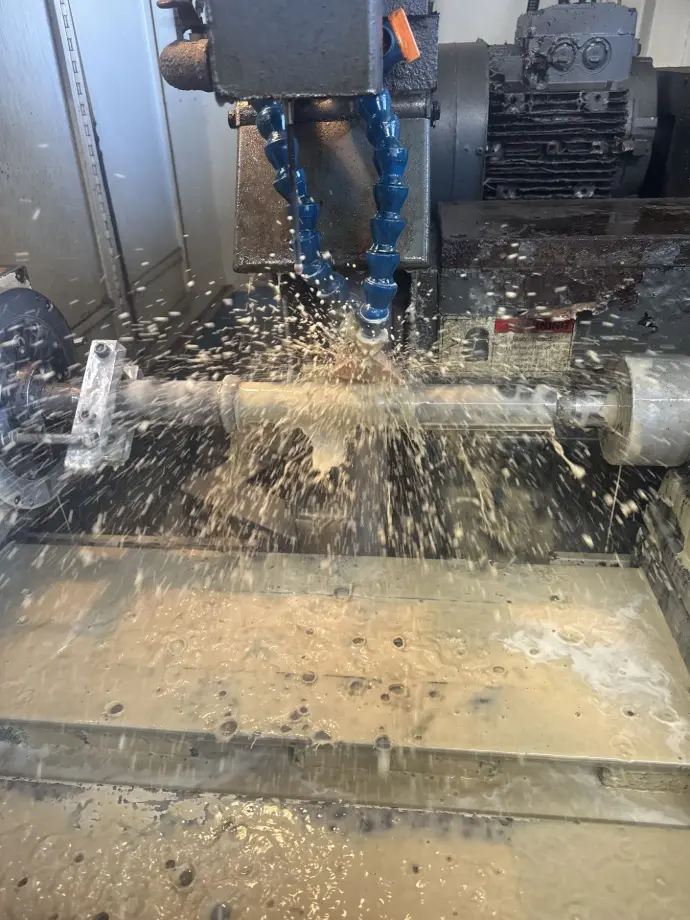

During the OD grinding process, the workpiece rotates while a grinding wheel removes material from the outside diameter of the part.
Depending on the application, components may be held between centers, in a chuck, or with specialized work holding methods.
Grinding wheel selection, wheel speed, feed rate, coolant application, and machine setup all contribute to the final size, surface finish, and overall quality of the component.
OD grinding is commonly used for applications where dimensional consistency and repeatability are critical.
Why OD Grinding Is Used
OD grinding is often used when conventional machining processes cannot consistently achieve the required tolerance, finish, or roundness.
Precision grinding allows extremely fine material removal while maintaining tight dimensional control across critical cylindrical surfaces.
The process helps improve concentricity, rotational accuracy, repeatability, and overall component consistency.
Surface Finish & Tolerances
Surface finish and dimensional accuracy play a major role in component performance.
Precision OD grinding helps improve wear resistance, rotational accuracy, concentricity, and fit between mating components.
The required tolerance and finish depend on the application, material, and operating environment of the component.
COMMON APPLICATIONS
Where OD Grinding Is Used
Shafts
Precision shafts requiring accurate outside diameters and controlled surface finishes.
Rollers
Precision rollers requiring controlled roundness and surface accuracy.
Spindles
High-precision spindle components requiring tight tolerance grinding.
Tooling Components
Industrial tooling requiring repeatability and precise cylindrical geometry.
Bearing Journals
Critical rotating surfaces requiring concentricity and dimensional consistency
Hydraulic Components
Cylindrical components requiring smooth finishes and precision fitment.
Common Industries We Support
Precision OD grinding is used across a wide range of industries requiring tight tolerances, controlled finishes, and dependable cylindrical accuracy.

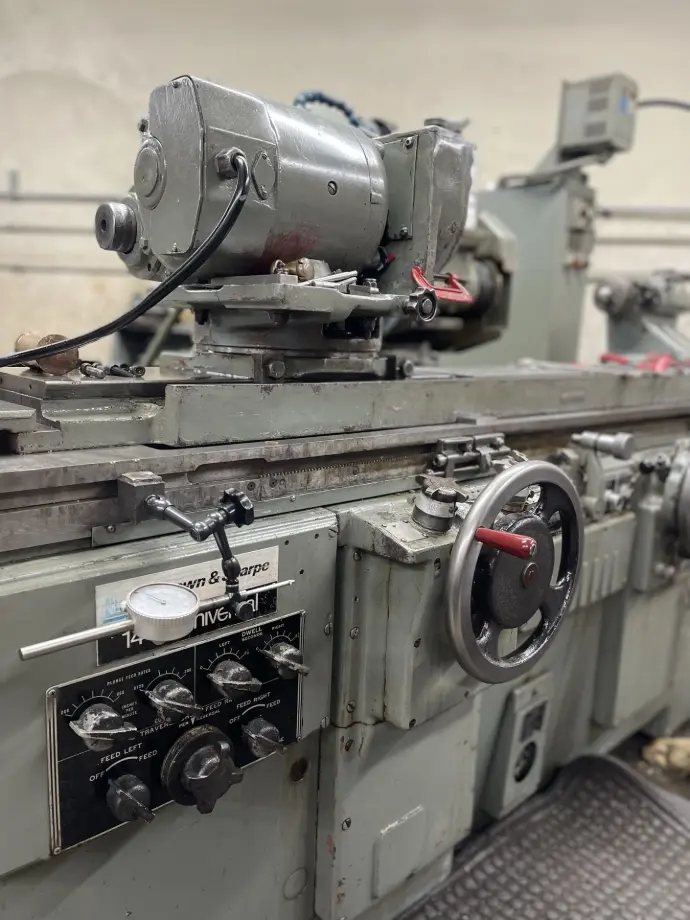

Industrial Machining
Precision cylindrical grinding for rotating equipment, shafts, tooling, and production components.
Aerospace
Tight tolerance grinding solutions for precision aerospace and high-performance components.
Hydraulics
Grinding services for hydraulic rods, cylinders, sealing surfaces, and precision components.
PRECISION CYLINDRICAL GRINDING
Precision OD grinding for tooling, repair work, and cylindrical component restoration.
Duval Precision Grinding
Need Precision OD Grinding Services?
Duval Precision Grinding provides precision OD grinding services focused on accuracy, consistency, and dependable workmanship.
